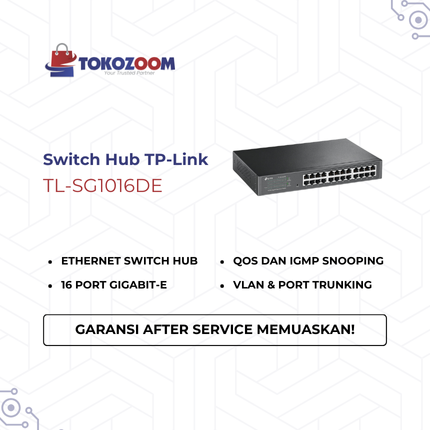

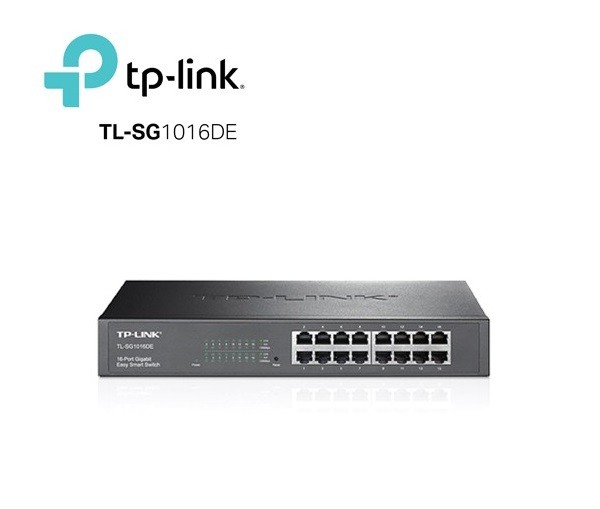

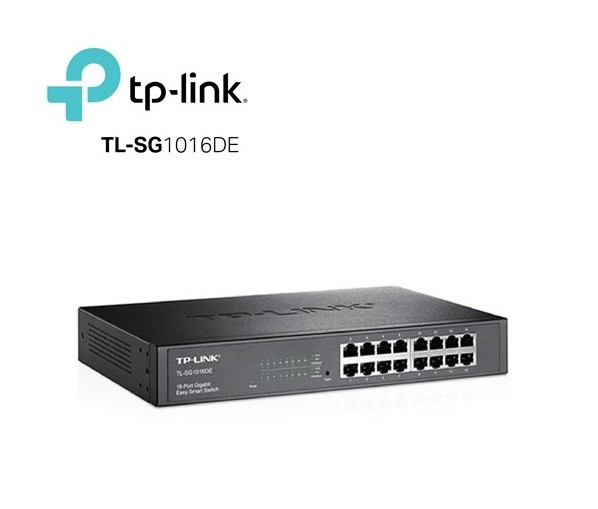

TL-SG1016DE

HARDWARE FEATURES
Standards and Protocols IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p
Interface 16 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX
Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100 STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100 STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100 STP (maximum 100m)
Fan Quantity Fanless
Power Supply 100-240VAC, 50/60Hz
Dimensions (W X D X H) 11.6*7.1*1.7 in. (294*180*44 mm)
Power Consumption Maximum: 11.73W (220V/50Hz)
PERFORMANCE
Switching Capacity 32Gbps
Packet Forwarding Rate 23.8Mpps
MAC Address Table 8K
Packet Buffer Memory 512KB
Jumbo Frame 9KB
SOFTWARE FEATURES
Quality of Service Support Port-based/802.1p/DSCP priority
Support 4 priority queues
Rate Limit
Storm Control
L2 Features IGMP Snooping
Link Aggregation
Port Mirroring
Cable Diagnostics
Loop Prevention
VLAN Supports up to 128 VLANs simultaneously (out of 4K VLAN IDs)
MTU/Port/Tag VLAN
Transmission Method Store-And-Forward

Package Contents
TL-SG1016DE
Power Cord
Installation Guide
Resource CD
Rackmount Kit
Rubber Feet

TL-SG2428P
JetStream 28-Port Gigabit Smart Switch with 24-Port PoE+

- 250 W PoE Budget
24 802.3at/af-compliant PoE+ ports with a total power supply of 250 W*.
- Full Gigabit Ports
24 gigabit PoE+ ports and 4 gigabit SFP Slots provide high-speed connections.
- Integrated into Omada SDN
Zero-Touch Provisioning (ZTP)**, Centralized Cloud Management, and Intelligent Monitoring.
- Centralized Management
Cloud access and Omada app for ultra convenience and easy management.
- Static Routing
Helps route internal traffic for more efficient use of network resources.
- Robust Security Strategies
IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X,
Radius Authentication, and more.
- Optimize Voice and Video Applications
L2/L3/L4 QoS and IGMP snooping.
- IPv6
IPv6 support with dual IPv4/IPv6 stack, MLD snooping, IPv6 neighbor discovery.

Realize More Possibilities with Omada
- Centralized Cloud Management , Omada SDN Platform Integration
- Advanced L2+ Features , L2/L3/L4 QoS, ACL, Static Routing and More
- Abundant Security Strategies , LAN Area Investment Protection
- PoE+ Output , 24 PoE+ Ports with Total 250 W Power Budget*

Software Defined Networking (SDN) with Cloud Access
Omadas Software Defined Networking (SDN) platform integrates network devices, including access points, switches and gateways, providing 100% centralized cloud management. Omada creates a highly scalable networkall controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.

Deskripsi Switch Hub D Link 24 Port Gigabit Unmanaged DGS 1024C switch Internet

D LINK DGS 1024C

24 Port 10 100 1000 Mbps Unmanaged Switch

The DGS 1024C Unmanaged Switch is economical, plug and play networking switch solution for SOHO and small and medium businesses wanting to benefit from the increased bandwidth of Gigabit Ethernet. It provides 24 10 100 1000 Mbps ports that enable you to easily expand your network and provide a quick way to upgrade your network to fast connectivity.

Features:

24x 10 100 1000 Mbps ports

Advanced Features:

Auto MDI MDIX crossover for all ports

Secure store and forward switching scheme

Full half duplex for Ethernet Fast Ethernet speeds

Supports 9216 byte jumbo frames

Back pressure at half duplex operation

Wire speed reception and transmission

Store and Forward switching method

Auto negotiation for each port

QoS (8 queues, strict mode)

Switching Capacity 48 Gbps switching fabric

RAM Buffer 512 KB per device

MAC Address Table Size 16000

Data Transfer Rates:

Ethernet : 10Mbps (half duplex), 20Mbps (full duplex)

Fast Ethernet : 100Mbps (half duplex), 200Mbps (full duplex)

Gigabit Ethernet : 2000Mbps (full duplex)

Auto MDI MDIX adjustment for all ports

Power : 100 to 240 V AC

Dimensions : 282.2 x 178.0 x 44.5 mm

Temperature Operating : 0 to 40C

Deskripsi IP Phone Yealink SIP-T21P E2

Technical Information

Features

Yealink HD Voice

132x64-pixel graphical LCD with backlight

Two-port 10/100M Ethernet Switch

PoE support

Up to 2 SIP accounts

Headset support

Wall mountable

Simple, flexible and secureprovisioning options

Audio Features

HD voice: HD handset, HD speaker

Wideband codec: G.722

Narrowband codec: G.711(A/), G.723.1, G.729AB, G.726, iLBC

DTMF: In-band, Out-of-band(RFC 2833) and SIP INFO

Full-duplex hands-free speakerphone with AEC

VAD, CNG, AEC, PLC, AJB, AGC

Phone Features

2 VoIP accounts

Call hold, mute, DND

One-touch speed dial, hotline

Call forward, call waiting, call transfer

Group listening, SMS, emergency call

Redial, call return, auto answer

Local 3-way conferencing

Direct IP call without SIP proxy

Ring tone selection/import/delete

Set date time manually or automatically

Dial plan

XML Browser, action URL/URI

Integrated Screenshots

RTCP-XR

Directory

Local phonebook up to 1000 entries

Black list

XML/LDAP remote phonebook

Intelligent search method

Phonebook search/import/export

Call history: dialed/received/missed/forwarded

IP-PBX Features

Busy Lamp Field (BLF)

Bridged Line Apperance(BLA)

Anonymous call, anonymous call rejection

Message Waiting Indicator (MWI)

Voice mail, call park, call pickup

Intercom, paging, music on hold, emergency call

Call completion, call recording

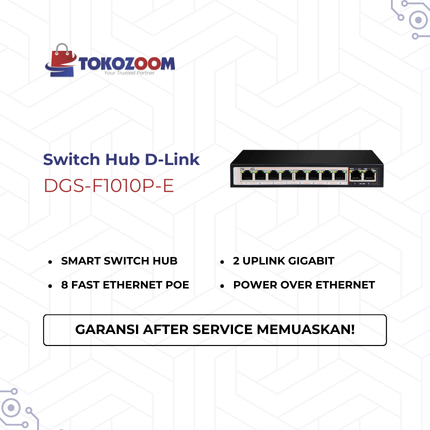

Deskripsi D-Link PoE Switch Hub DES F1010P-E

250M 10-Port Fast Ethernet Switch with 8 PoE Ports and 2 Uplink Ports

• 8 10/100 Mbps PoE ports

• 2 10/100Mbps Uplink ports

• 96 W PoE budget

• Support IEEE802.3af/at up to 30W per port to PoE compatible devices

• Support transmission Data/PoE up to 250m cable length

• 6KV Lightning protection

• Smart Features: Extend, VLAN, QoS and PoE

• Plug & Play Installation

Size : • Desktop

Interfaces :

• 8 10/100 BASE-T ports

• 2 10/100 BASE-T Uplink ports

Standards :

• IEEE 802.3 10BASE-T Ethernet (twisted-pair copper)

• IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper)

• ANSI/IEEE 802.3 NWay auto-negotiation

• IEEE 802.3x ow control

Media Interface Exchange : • Auto MDI/MDI-X adjustment on all ports

Lighting Protection : • 6KV

Switching Fabric : • 2 Gbps

Transmission Method : • Adopt Store-and-forward

Data Transfer Rates :

• Fast Ethernet

• 100 Mbps

• Ethernet

• 10 Mbps

Packet Filtering / Forwarding Rates :

• 10M port maximum 14800pps

• 100M port maximum 148800pps

PoE Standards :

• IEEE 802.3af

• IEEE 802.3at

PoE-Capable Ports : • Ports 1 to 8

Power Budget : • 96 W (36 W max. per PoE port)

LED Power : • Yes

LED Link/Activity : • Yes

Weight : • 0.95kg

Dimensions : • 184 x 75 x 27 mm

Power : • External power adapter: 60W

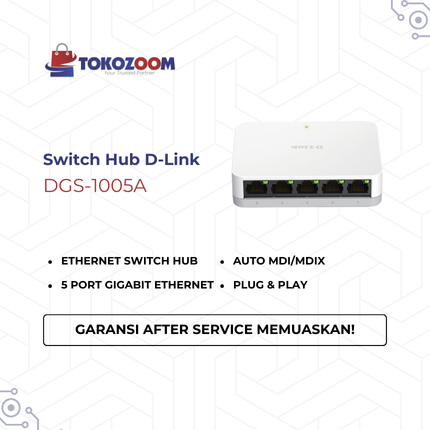

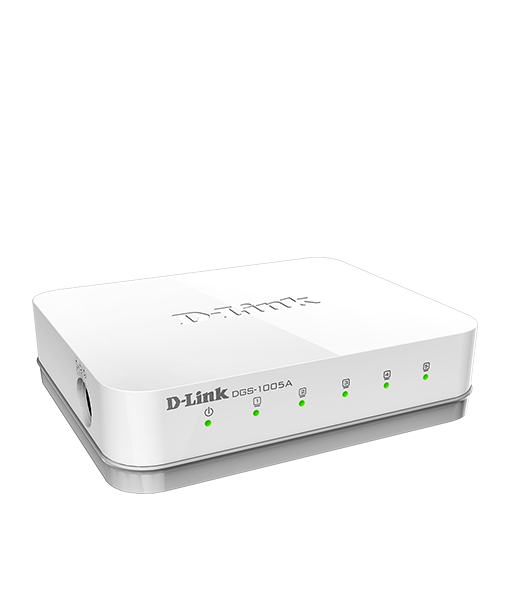

D-Link DGS-1005A Switch Hub gigabit 5 Port 10/100/1000 Mbps

Switching Fabric
10Gbps
5 PORT 10/100/1000
Standards
IEEE 802.3 10BASE-T Ethernet (twisted-pair copper)
IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper)
IEEE 802.3ab 1000BASE-T Gigabit Ethernet (twisted-pair copper)
ANSI/IEEE 802.3 NWay auto-negotiation
IEEE 802.3x Flow Control
IEEE 802.1pQoS
IEEE 802.3az Energy-Efficient Ethernet (EEE)
Protocol
CSMA/CD
Data Transfer Rates
Ethernet:
10 Mbps (half duplex), 20 Mbps (full duplex)
Fast Ethernet:
100 Mbps (half duplex), 200 Mbps (full duplex)
Gigabit Ethernet:
2000 Mbps (full duplex)
Topology
Star
Network Cables
10BASE-T:
UTP CAT 3, 4, 5/5e (100 m max.)
EIA/TIA-586 100-ohm STP (100 m max.)
100BASE-TX, 1000BASE-T:
UTP CAT 5/5e (100 m max.)
EIA/TIA-568 100-ohm STP (100 m max.)
Media Interface Exchange
Auto MDI/MDIX adjustment for all ports
LED Indicators
Per port: Link/Activity/Speed
Per device: Power
Transmission Method
Store-and-forward
MAC Address Table
2K
MAC Address Learning
Automatic update
Packet Filtering/Forwarding Rates
Ethernet: 14,880 pps per port
Fast Ethernet: 148,800 pps per port
Gigabit Ethernet: 1,488,000 pps per port
RAM Buffer
128KB per device
