Switch D-Link DES-F1006P-E 6-Port 10/100 dengan 4 PoE Ports menghubungkan perangkat Power over Ethernet (PoE)seperti Access Point (AP), IP Camera, dan IP Phone ke jaringan. Dirancang untuk pengguna rumahan dan small bisnis DES-F1006P-E sangat ideal untuk sebagian besar ruangan & kantor.


DES-F1006P-E memiliki empat port 10 / 100BASE-T mendukung standar IEEE 802.3af dan IEEE 802.3at memasok hingga 30 W pada setiap port PoE hingga 250m dengan daya total 60 W. Anda dapat sambungkan perangkat yang kompatibel ke DES-F1006P-E tanpa menggunakan daya tambahan. Ini akan menghemat kabel dan memasang perangkat di lokasi tanpa akses langsung ke outlet listrik.



Features :

· High-Speed Networking

· Six 10/100 Mbps Ethernet ports

· Full/half-duplex for Ethernet/Fast Ethernet

· 4 Ports (Downlink) 10/100M PoE support up to 250M

Functions :

• Plug-and-play installation

• Auto MDI/MDI-X crossover on all ports Stylish Design

• Compact lightweight chassis

• VLAN

• EXTEND

• PoE

• QoS

• Power Budget 60W

• 6KV surge protection

• Support 802.3af/at

• Up to 250W (30 W power output per PoE port)

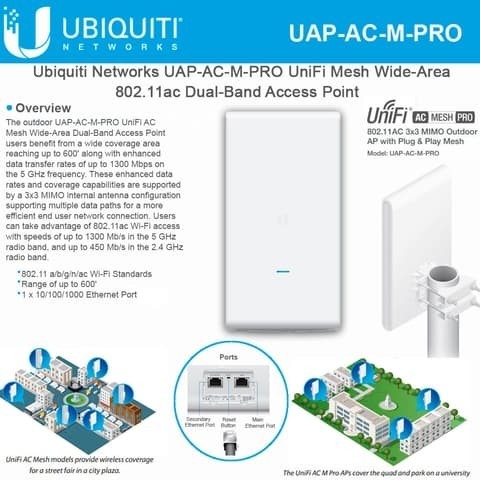

UBIQUITI UAP AC MESH PRO dual-band, 3x3 MIMO technology, 802.11AC dual-band access point, capable of speeds of up to 1750 Mbps.

Expand your Wi-Fi network outdoors with the UniFi AC Mesh Pro Access Point, part of the Ubiquiti Networks UniFi Enterprise Wi-Fi System. The UAP-AC-M-PRO is a high-performance, outdoor, 3x3 MIMO, 802.11AC dual-band access point, capable of speeds of up to 1750 Mbps. It features a proprietary, MIMO-optimized, omni-directional Super Antenna for exceptional 360 coverage, providing symmetrical long-range communications of up to 183 meters.

Dimensions : 343.2 x 181.2 x 60.2 mm (13.51 x 7.13 x 2.37")
Weight : 633 g (1.40 lb)
Networking Interface : (2) 10/100/1000 Ethernet Ports
Ports : (2) 10/100/1000 Ethernet
Buttons : Reset
Antennas : 3 Dualband antennas
Wi-Fi Standards : 802.11a/b/g/n/ac
Power Method : 802.3af PoE
Power Supply : PoE Injector 48VDC -0.5A Gigabit
Maximum Power Consumption : 9W
Max TX Power : 22 dBm
BSSID : Up to Four per Radio
Power Save : Supported
Wireless Security : WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
Certifications : CE, FCC, IC
Mounting : Wall/Pole (Pole Kit Included)
Operating Temperature : -40 to 70 C (-40 to 158 F)
Operating Humidity : 5 to 95% Noncondensing

VLAN : 802.1Q
Advanced QoS : Per-User Rate Limiting
Guest Traffic Isolation : Supported
WMM : Voice, Video, Best Effort, and Background
Concurrent Clients : 100+

TP-LINK TL-WN781ND - 150Mbps Wireless PCI Express Adapter

TP-LINK TL-WN781ND - 150Mbps Wireless PCI Express Adapter

TINJAUAN

* Sampai dengan 150Mbps tingkat transmisi nirkabel

* PCI Express Interface

* Keamanan koneksi sekuriti WPA/WPA2

* Dibundel utilitas memungkinkan manajemen yang mudah

FUNGSI PRODUK

TP-LINK TL-WN781ND dirancang untuk memberikan pengguna akhir yang lengkap untuk mengakhiri kinerja nirkabel dari server atau backbone infrastruktur server untuk switch dan turun melalui ke desktop dengan konektor PCI Express. TL-WN781ND Wireless N PCI Express (x1) Adapter menyediakan kompatibilitas yang lebih luas, pas dengan standar slot PCI Express, x1, x2,, x8 atau x16. Dibandingkan dengan network card PCI standar, ia menawarkan peningkatan bandwidth, kehandalan dan fungsionalitas yang lebih, yang memungkinkan Anda untuk menikmati koneksi yang cepat dan canggih, seperti men-download, membuat panggilan internet dan video streaming.

FITUR HARDWARE

Interface: PCI Express

Dimensions ( W x D x H ): 4.8 x 3.1 x 0.8in. (120.8 x 78.5 x 21.5mm)

Antenna Type: Detachable Omni Directional (RP-SMA)

Antenna Gain: 2dBi

FITUR WIRELESS

Wireless Standards: IEEE 802.11n, IEEE 802.11g, IEEE 802.11b

Frequency: 2.400-2.4835GHz

Transmit Power: 20dBm (EIRP)

Wireless Modes: Ad-Hoc / Infrastructure mode

Wireless Security: Support 64/128 bit WEP, WPA-PSK/WPA2-PSK

Modulation Technology: DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM

ISI KEMASAN / PAKET

* Wireless Adapter

* Detachable Omni directional antenna

* Resource CD

* Quick Installation Guide

Deskripsi Ubiquiti Unifi AP AC PRO (UAP-AC-PRO) POE UBNT Dual Band Access point

Ubiquiti Unifi AP AC PRO ( UAP-AC-PRO ) UBNT Dual Band Access point

UAP-AC-PRO UniFi AC1750 Indoor/Outdoor Simultaneous Dual-Band WiFi PoE Access Point (1750Mbps AC)

2.4Ghz Speed : 450Mbps

5Ghz Speed : 1300Mps

PoE Mode : 802.3af PoE/802.3at PoE+

Networking Interface (2) 10/100/1000 Ethernet Ports

Port (1) USB 2.0 Port

Buttons Reset

Power Supply 48V, 0.5A PoE Gigabit Adapter ( Include )

Power Save Supported

Maximum Power Consumption 9W

Antennas (3) Dual-Band Antennas, 2.4 GHz: 3 dBi, 5 GHz: 3 dBi

Wi-Fi Standards 802.11 a/b/g/n/ac

Wireless Security WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)

BSSID Up to Four per Radio

Mounting Wall/Ceiling (Kits Included)
